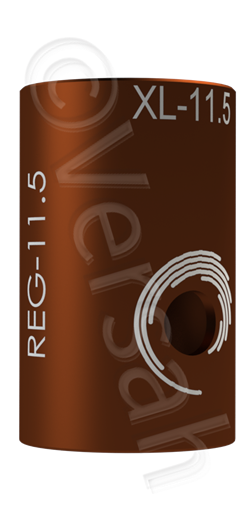

Vertical G-Stop Key, Xtra Large, 11,5 mm, 1 stk.

Versah® Vertical G-Stop® Key, Xtra Large, 11,5 mm, er en vertikal dybdestopper, der bruges sammen med Versah® Densah® Guided Burs for at opnå kontrolleret bore-/klargøringsdybde ved guided implantatkirurgi.

• Giver vertikal dybdekontrol ved brug med Versah® Densah® Guided Burs (Regular & Short)
• Angivet til implantatdiametre op til 6,2 mm
• Optimeret til at muliggøre rigelig irrigation til Versah® Densah® Burs
• Regular (Standard) boredybde: 11,5 mm med Densah® Guided Burs
• Short boredybde: 6,5 mm med Densah® Short Guided Burs
• Udvendig diameter: 7,0 mm

Kompatibilitet:

• Xtra Large C-Guide® Sleeve
• Densah® Guided Burs: Guided Pilot Drill, Guided Short Pilot Drill, VT1525-G, VT1525-GS, VT1828-G, VT1828-GS, VS2228-G, VT2535-G, VT2535-GS, VT2838-G, VT2838-GS, VS3238-G, VT3545-G, VT3545-GS, VT3848-G, VT3848-GS, VS4248-G, VT4555-G, VT4858-G, VS5258-G

IMPLANT SYSTEM DRILLING PROTOCOLS >>

Features:
11,5 mm Drilling Depth for the Regular Length Densah Burs
6,5 mm Drilling Depth for the Short Densah Burs
Compatible with Extra-Large C-Guide® Sleeve
Optimized to Allow Copious Irrigation to the Densah Burs
Used for Implant Diameters up to 6.2 mm
G-Stop Key Outside Diameter: 7.0 mm

Requirements:
Large Vertical Gauge
Generation 3 (G3) Densah Bur
Compatible with Pilot Drill, VT1525, VT1525-S, VT1828, VT1828-S, VS2228, VT2535, VT2535-S, VT2838, VT2838-S, VS3238, VT3545, VT3545-S, VT3848, VT3848-S, VS4248, VT4555, VT4858, VS5258
